GraphFileAnimator2D - 2D Graph Plotting Tool for Animating Data Loaded from Multiple Files

This VCSSL program is a simple tool which plots 2D animation graphs by loading multiple data files.

- Index -

How to Use

Download and Extract

At first, click the "Download" button at the above of the title of this page by your PC (not smartphone). Then a ZIP file will be downloaded, so please extract it (by selecting "Extract All" from right-clicking menu).

» If the extraction of the downloaded ZIP file is stopped with security warning messages...

Execute this Program

Next, open the extracted folder and execute this VCSSL program.

For Microsoft® Windows®

Double-click the batch file "VCSSL.bat" to execute.

For Linux®, etc.

Execute "VCSSL.jar" on the command-line terminal as follows:

cd <extracted_folder>
java -jar VCSSL.jar

» If the error message about non-availability of "java" command is output...

How to Use After Executing the Program

Specify the folder in which data files are

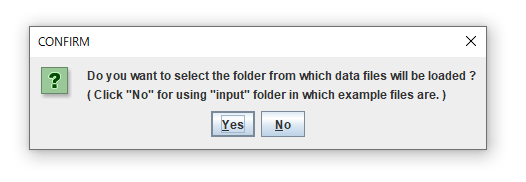

After the program have been launched, select whether you want to specify the folder in which data files are or not.

Confirmation window

If you select "No" here, the "input" folder in this package will be used. By the default, example data files are in the "input" folder.

If you have already prepared data files in the other folder, and you want to plot them, select "YES" here, and then specify the folder by choosing it on the file-chooser window.

Input the file name and the extension

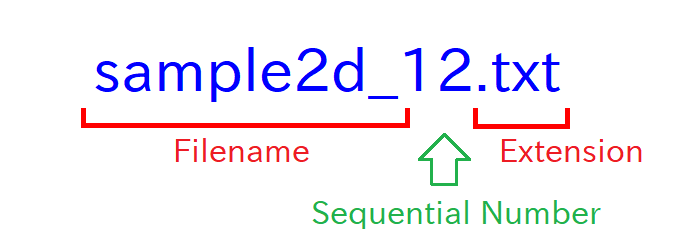

Ends of names of data files should be sequential numbers. See the following figure:

Filename, sequential number, and extension

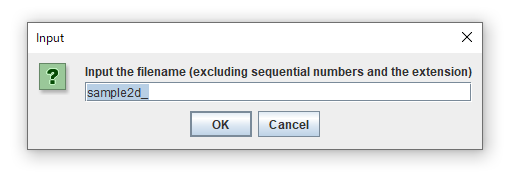

Next, input the filename of data files, excluding serial numbers and the extension, for example: "sample2d_". Then input the extension.

Filename input window
If extensions are not shown on your PC ...
Many of recent PCs don't show extensions of files by default, but you can set to show it. For details, search "show file extension".

Windows and UI

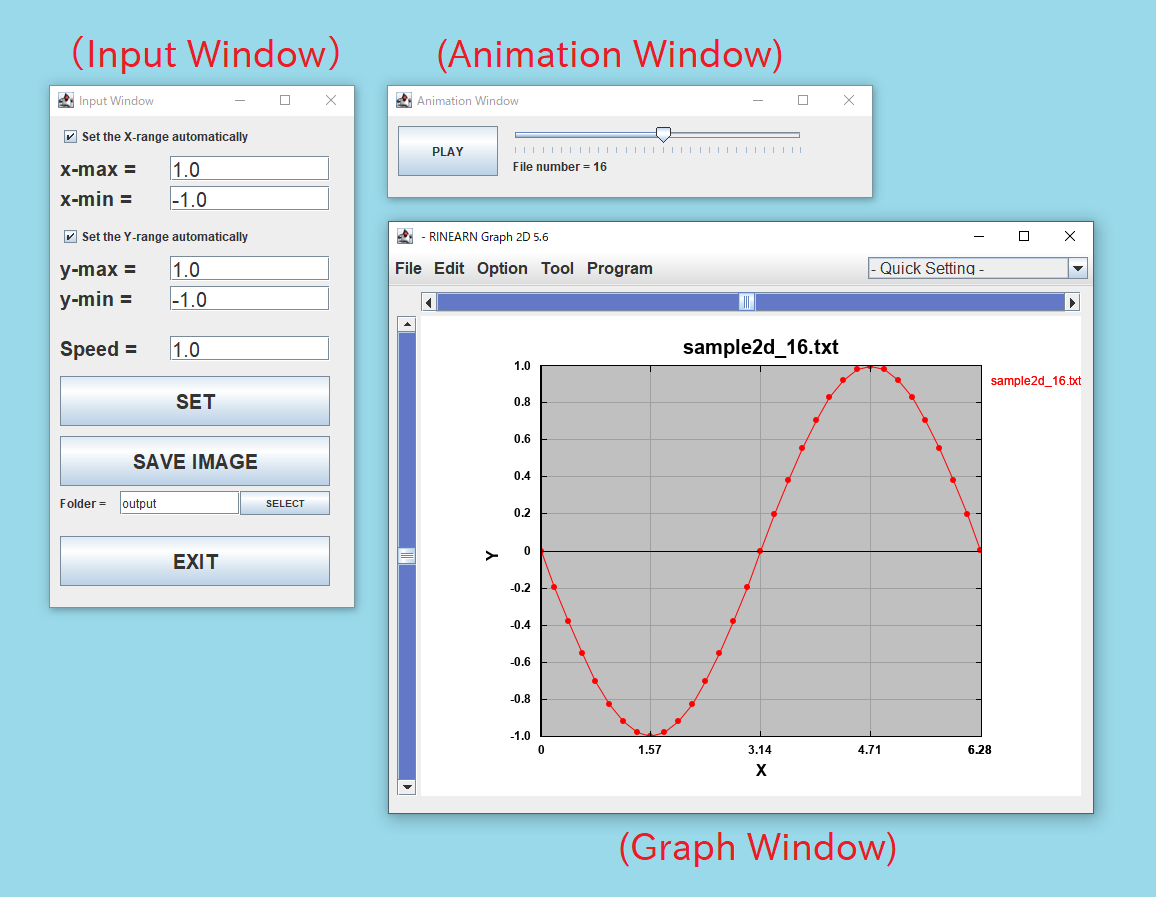

Then following three-windows will be launched. The left one is the input-window, the right-top one is animation-window, and the right-bottom one is the graph-window,

UI

Start / Stop the Animation

Click the "PLAY" button to start the animation. The animation will be rendered by repeating fastly to plot each data file in the specified folder, in the order of sequential numbers of filenames.

When the animation is started, the label of the "PLAY" changes to "STOP". For stopping the animation, click this button again.

Save image files of graphs

You can save images of graphs as PNG-format image files by clicking "Save Image" button. By default, image files will be output in the "output" folder in this package.

Image files will be saved with filenames with sequential numbers. From them, you can create a video file or a GIF animation file by using general video-encoding/image-processing software.

Option Settings

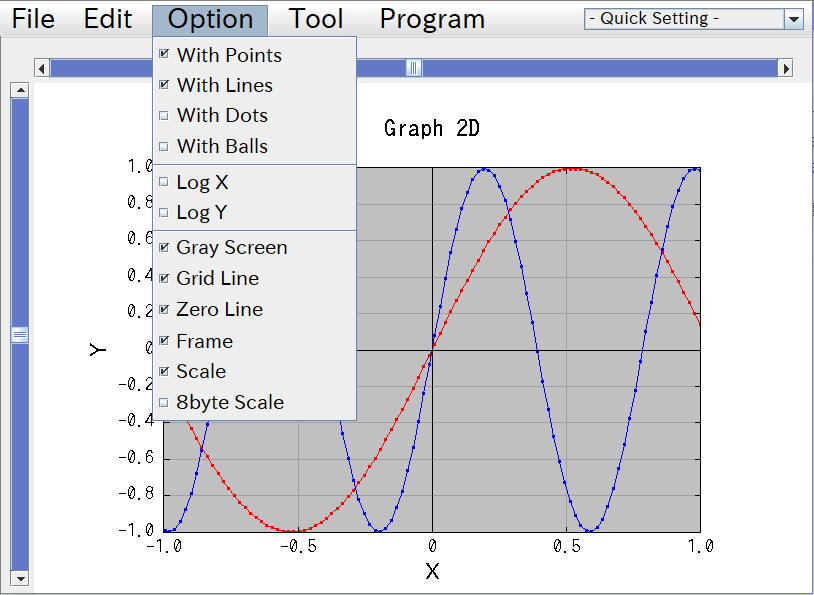

You can select plotting-options by the "Option" menu on the menu bar, which is at the top of the graph window.

Plotting options

You can also modify other settings by menus on the menu bar, and can save settings by the "File" > "Save Setting" menu.

RINEARN Graph 2D
The 2D graph software "RINEARN Graph 2D" is used as the graph-window of this program. If you like UI and operability of the graph-window of this program, please try to use RINEARN Graph 2D for your data-analysis use.
» More Details

Data file formats

For details of formats of data files, see the manual of the RINEARN Graph 2D:

Example data files in "input" folder are also good examples to grasp the most simple format supported by this tool. The content of "sample2d_2.txt" is as follows:

- input/sample2d_2.txt -
0.0    -0.3826834323650898
0.19634954084936207    -0.19509032201612825
0.39269908169872414    0.0
0.5890486225480862    0.19509032201612825
0.7853981633974483    0.3826834323650898
0.9817477042468103    0.5555702330196022
1.1780972450961724    0.7071067811865475
1.3744467859455345    0.8314696123025452
1.5707963267948966    0.9238795325112867
1.7671458676442586    0.9807852804032304
1.9634954084936207    1.0
2.1598449493429825    0.9807852804032305
2.356194490192345    0.9238795325112867
2.552544031041707    0.8314696123025451
2.748893571891069    0.7071067811865476
2.945243112740431    0.5555702330196025
3.141592653589793    0.3826834323650899
3.3379421944391554    0.19509032201612816
3.5342917352885173    1.2246467991473532E-16
3.730641276137879    -0.19509032201612792
3.9269908169872414    -0.38268343236508967
4.123340357836604    -0.5555702330196023
4.319689898685965    -0.7071067811865471
4.516039439535327    -0.8314696123025452
4.71238898038469    -0.9238795325112865
4.908738521234052    -0.9807852804032305
5.105088062083414    -1.0
5.301437602932776    -0.9807852804032307
5.497787143782138    -0.9238795325112866
5.6941366846315    -0.8314696123025455
5.890486225480862    -0.7071067811865483
6.086835766330224    -0.5555702330196022

Each line in the above file corresponds each point plotted on the graph, and they will be linked by polylines by default.

Two values are described in each line. Value at the left represents X coordinate values, and values at the right represents Y coordinate values. You can split columns by spaces, tabs, or commas(,).

If you want to describe multiple data series (plotted by using different colors) in one file, insert a blank line at the boundary of each data series.

Code

This code is written in VCSSL.

License

The license of this VCSSL code (the file with the extension ".vcssl") is Public Domain (CC0), so you can customize / divert / redistribute this VCSSL code freely.
