Numerical Integration Using the Trapezoidal Method (Trapezoidal Approximation)

In this VCSSL program, we continue from the previous article on the rectangular method to numerically calculate the value of an integral.

This time, we go one step further and use trapezoids to approximate the small areas under the curve. Although the actual change in the code is just a single line, the resulting improvement in accuracy is quite dramatic.

Note: As with previous articles, this program is a sample code meant for explaining the algorithm, so it does not include any advanced GUI features. To change the integrand function or parameters, please modify the code directly.

The code is written in VCSSL, but you're welcome to port it to another language if you prefer. (We've also included C version and C++ version code samples below.) This code is released into the public domain (CC0), so you are free to use it at your own risk.

[ Articles in the Numerical Integration Series ]

• Part 1: Numerical Integration Using the Rectangular Method (previous)
• Part 2: Numerical Integration Using the Trapezoidal Method (this article)
• Part 3: Numerical Integration Using Simpson's Rule (next)
• Summary： Programs for Calculating Integral Values (Numerical Integration)

How to Use

Download and Extract

At first, click the "Download" button at the above of the title of this page by your PC (not smartphone). A ZIP file will be downloaded.

Then, please extract the ZIP file. On general environment (Windows®, major Linux distributions, etc.), you can extract the ZIP file by selecting "Extract All" and so on from right-clicking menu.

» If the extraction of the downloaded ZIP file is stopped with security warning messages...

Execute this Program

Next, open the extracted folder and execute this VCSSL program.

For Windows

Double-click the following batch file to execute:

For Linux, etc.

Execute "VCSSL.jar" on the command-line terminal as follows:

» If the error message about non-availability of "java" command is output...

After Launching

When launched, the program runs the numerical integration process, displays the graph of the integrated function, and prints the resulting integral value to the console.

Modifying the Integrand or Parameters

To change the integrand function, integration interval, or accuracy, open the program file "IntegralTrapezoidal.vcssl" in a text editor and modify the code as needed.

Topic Overview

Quick Recap of the Previous Article

This article builds upon what we covered in the previous article. Let's do a quick review. If you want to solidify your understanding, feel free to read the previous article first:

• Previous: Numerical Integration Using the Rectangular Method

In the previous article, we calculated the value of a definite integral by approximating the area between the x-axis and \( y = f(x) \) using thin rectangles. Here's the visual representation: /p>

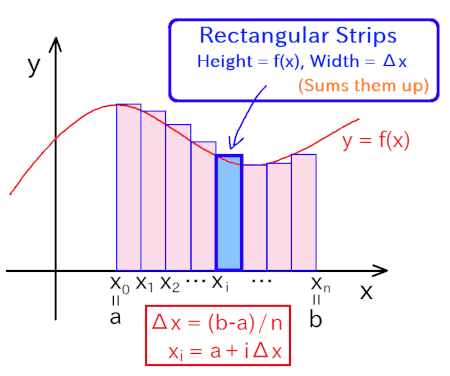

Area divided into \(n\) long, thin rectangles

By summing the areas of these rectangles, you can approximately compute the area between the function \(f(x)\) and the \(x\)-axis -- that is, the integral value.

As we saw, the area between the \(x\)-axis and the curve \(y = f(x)\) is theoretically equal to the definite integral of \(f(x)\).

This means we don’t need to solve the integral analytically -- as long as we can compute the area numerically with a program, we can obtain the integral value.

However, this method inevitably introduces error, as shown in the diagram. That's because we're approximating a curved area using rectangles, which naturally results in overestimation or underestimation -- gaps and overlaps that lead to error.

How Can We Reduce That Error?
-- From Rectangles to Trapezoids

Now let's dive into the main topic of this article.

Looking again at the previous diagram, you might ask: "How can we quickly reduce this error?" A natural idea is to make the rectangles thinner -- i.e., increase the number of subdivisions.

In fact, if you try it out, you'll see that the error decreases roughly in proportion to the rectangle width (see previous article).

But beyond a certain point, making them thinner results in diminishing returns: the number of calculations skyrockets, other types of error (like rounding) begin to accumulate, and the required computation time increases.

So here's the key question: Can we reduce the error more effectively -- without increasing the number of subdivisions? Let's try switching from rectangles to trapezoids to approximate the area between the x-axis and \(y=f(x)\):

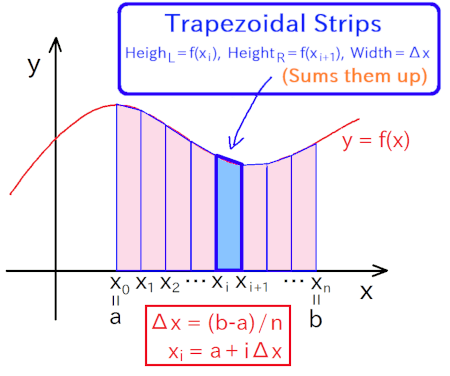

Area divided into \(n\) long, thin trapezoids

By summing the areas of trapezoids instead of rectangles, we can approximate the area between \(f(x)\) and the x-axis (i.e., the integral value) more accurately.

If you compare this diagram with the one using rectangles, you can clearly see that the gaps and overlaps are smaller, and the approximation looks much closer to the actual curve.

As it turns out, this method -- known as the trapezoidal method (trapezoidal approximation) -- can dramatically reduce error compared to the rectangular method.

Now let's get into the actual calculation.

Just like before, we divide the interval from \(a\) to \(b\) into \(n\) segments (trapezoids).
We define:
\[ \Delta x = (b - a) / n \] \[ x_i = a + i \Delta x \]
Each trapezoid has a base width of \(\Delta x\), and the area of the i-th trapezoid is calculated using:
\[ \textrm{Area of i-th trapezoid} = \frac{ (\textrm{Height}_{Left} + \textrm{Height}_{Right} ) \times \textrm{Width} }{ 2 } \] \[ = \frac{ ( f(x_i) + f(x_{i+1}) ) }{ 2 } \Delta x \] \[ = \frac{ ( f(x_i) + f(x_i + \Delta x) ) }{ 2 } \Delta x \]
Then we sum the areas of all trapezoids:
\[ \textrm{Total area (integral value)} = \sum_{i=0}^{n-1} \frac{ ( f(x_i) + f(x_i + \Delta x) ) }{ 2 } \Delta x \]
As you can see, this is only a slight change from the previous method -- and in fact, the required change to the program code is just as small.

Code

Let's take a look at the actual code for performing numerical integration using the **trapezoidal method (trapezoidal approximation)**.

The program is written in VCSSL, which has a syntax somewhat similar to C, so it should feel fairly intuitive to read.

In addition, we've included equivalent implementations in C and C++ below as well.

Full Code Listing

Let's begin with the full code written in VCSSL. It's fairly short -- under 50 lines in total:

coding UTF-8;         // Specify character encoding to avoid mojibake
import Math;          // Import math library
import tool.Graph2D;  // Import graphing library


// Parameter constants for the calculation
const double A = 0.0;  // Lower bound of the integration interval
const double B = 1.0;  // Upper bound of the integration interval
const int N = 10;      // Number of subdivisions (higher = more accurate)

// Function to integrate: f(x) = cos(x)
double f(double x) {
	return cos(x);
}

// ------------------------------------------------------------
// Numerical integration using the trapezoidal method
// ------------------------------------------------------------

double delta = (B - A) / N;  // Width of each trapezoid: Delta x
double value = 0.0;          // Final result (total area)

for(int i=0; i<N; i++) {

	// X value at the bottom-left of the i-th trapezoid
	double x = A + i * delta;

	// Print partial result up to the i-th point
	println(x, value); // (Comment out if N is large)

	// Add the i-th trapezoid's area to the total
	value += ( f(x) + f(x+delta) ) * delta / 2.0;
}

// Output the final integral value
println(B, value);

// Plot the results on a graph
// (Comment out if N is large)
setGraph2DData(newGraph2D(), load());

That's the full code.

Here's the overall structure: You first define the integrand and parameters, then use a for loop in the middle section to compute the integral, and finally plot the results.

Here's the same algorithm implemented in C:

And here's the equivalent implementation in C++:

That's it for the code listings. Let's now take a closer look at how it all works.

Just One Line Changed from Last Time!

The detailed structure of the code is nearly identical to the one from the previous article, so please refer to that for an in-depth explanation.

[ ↓ Previous Code ]

	...

	// Add the area of the i-th rectangle (strip) to the total
	value += f(x) * delta;

	...

[ ↓ This Time's Code ]

	...

	// Add the area of the i-th trapezoid to the total
	value += ( f(x) + f(x+delta) ) * delta / 2.0;

	...

In other words, we simply swapped out the formula for the rectangle's area with the one for a trapezoid:
\[ \textrm{Area of i-th trapezoid} = \frac{ (\textrm{Height}_{Left} + \textrm{Height}_{Right} ) \times \textrm{Width} }{ 2 } \] \[ = \frac{ ( f(x_i) + f(x_{i+1}) ) }{ 2 } \Delta x \] \[ = \frac{ ( f(x_i) + f(x_i + \Delta x) ) }{ 2 } \Delta x \]

So, What About the Error?

Can this one-line change really reduce the error that dramatically? Let's try running the program and find out.

When you execute the program, a graph of the integration process appears. Since the integrand is currently \(f(x) = \cos x\), the integral should trace the shape of \(sin x\).

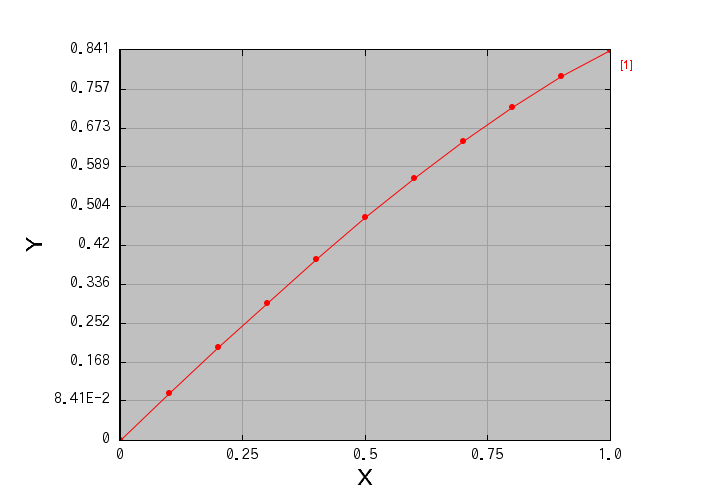

A graph of the integration process

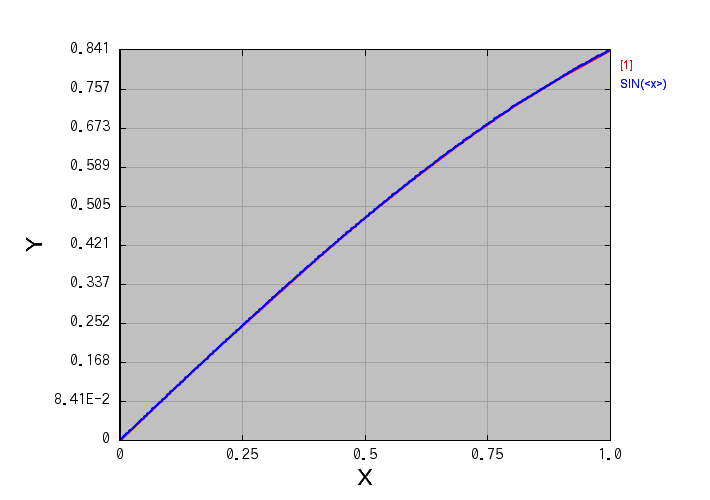

The red line (barely visible because it overlaps) represents the integration results from the program. The blue line is the exact function \(sin x\), plotted for comparison.

As shown above, the **red line** (our computed result) nearly overlaps the blue line, which represents the exact values of \(sin x\).

Even with just N = 10, meaning only 10 trapezoids were used for approximation, the accuracy is quite impressive.

Now let's compare this result with the graph from the previous program that used the rectangular method (i.e., strips), focusing on the upper-right region where the deviation was most visible.

Comparison Graph (N = 10)

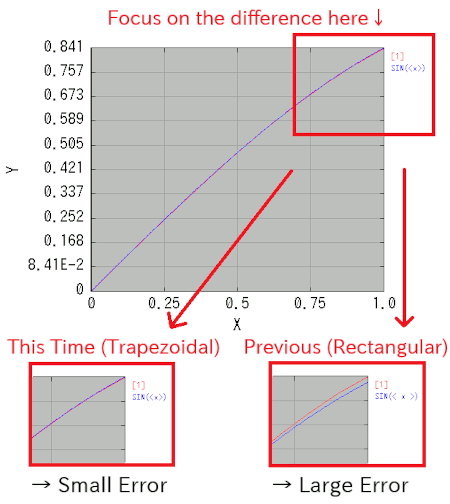

Comparison between the trapezoidal and rectangular methods (both using N = 10). The blue line is the exact value; the red line is the computed result. You can clearly see that the trapezoidal method gives a closer approximation.

Even with the same subdivision count \(N = 10\), the trapezoidal method gives a more accurate result than the rectangular method, just as we expected.

What Happens as We Increase N?

The graph gives us a good visual idea of the accuracy, but let's also look at the actual numerical values. Here's an example of the output in the console:

In each line, the left column shows the x-value, and the right column shows the accumulated integral value up to that point. Each step adds the area of one trapezoid.

The final value "0.8407696420884198" gives us the total integral value of: \[ \int^{1}_{0} \cos(x) dx \] The exact value is: \[ = \sin 1 \approx 0.8414709848... \] So we start to see a small discrepancy in the third decimal place. That's our approximation error.

Now, what happens when we increase \(N\), the number of subdivisions?

As you can see, increasing \(N\) rapidly improves the result's accuracy. From this, we can observe that the trapezoidal method increases accuracy by roughly two digits every time you increase \(N\) by a factor of 10.

This is known as having second-order accuracy.

In contrast, the rectangular method we used previously only improved by one digit per tenfold increase in \(N\), making it a first-order method.

The Importance of Algorithmic Order

In numerical computation, the order of accuracy is a big deal.

Generally, higher-order methods yield better accuracy with fewer steps, reducing both error and computation time.

However, high-order methods often involve heavier calculations per step, so increasing the step count might not be practical in all cases. Also, how the errors behave -- whether they accumulate steadily or oscillate -- can affect which method is most suitable.

In serious numerical computing, these trade-offs must be considered carefully when choosing an algorithm.

A Reasonable Step Up -- But Not the Final Destination

The trapezoidal method is a simple and approachable way to get noticeably better accuracy than the rectangle method, without making the code much more complex.

It's not a high-precision solution, but when you want a quick and lightweight approach that still gives decent results, it can be a practical choice in casual or low-demand scenarios.

After all, you're just changing one line of code from the rectangular method, and the accuracy improves significantly. That kind of "easy gain" is one of the small joys of numerical programming.

But -- is the trapezoidal method enough for serious use?
Not quite. In most real-world applications where numerical integration matters, methods with higher-order accuracy (like fourth-order) are the norm.

The good news? With just a little more effort, you can step up to that level. In the next article, we'll explore Simpson’s Rule -- a method that’s still simple, but powerful enough for more serious work.
