Creating a Model from a Vertex Array (Quadrangle Grid Mesh Format)

This program is a VCSSL sample that creates a 3D model from a vertex array.

When creating a custom-shaped model in VCSSL, the most basic method is to define each polygon individually and combine them to form the model. However, if the polygons are arranged in a regular pattern, it's also possible to directly generate a model from a float array that stores vertex coordinates.

That said, there are several different formats and orders in which to store vertex coordinates in the array. In this program, we'll use the Quadrangle Grid Mesh format (QUADRANGLE_GRID), which is especially useful for visualization in simulations and similar applications.

Sponsored Link

---

How to Use

Download and Extract

At first, click the "Download" button at the above of the title of this page by your PC (not smartphone). A ZIP file will be downloaded.

Then, please extract the ZIP file. On general environment (Windows®, major Linux distributions, etc.), you can extract the ZIP file by selecting "Extract All" and so on from right-clicking menu.

» If the extraction of the downloaded ZIP file is stopped with security warning messages...

Execute this Program

Next, open the extracted folder and execute this VCSSL program.

For Windows

Double-click the following batch file to execute:

For Linux, etc.

Execute "VCSSL.jar" on the command-line terminal as follows:

» If the error message about non-availability of "java" command is output...

Operations After Launch

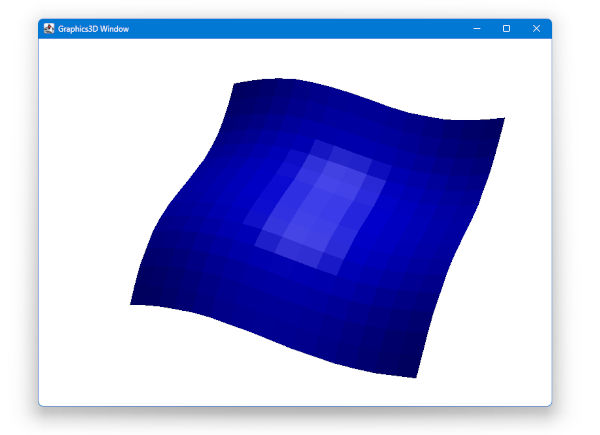

When you run the program, a window will open, displaying a 3D surface.

You can control the view using the mouse as follows:

• Left drag: Rotate the viewpoint
• Right drag: Move the viewpoint
• Scroll wheel: Zoom in/out

Topic Overview

What Is the Quadrangle Grid Mesh Format?

When a model consists of a collection of quadrangles, the most basic format for the vertex array is the Quadrangle List (QUADRANGLE_LIST), where each quadrangle independently specifies four vertices.

However, if the quadrangles are arranged in a grid and form a surface, neighboring quadrangles share their vertices. In such cases, specifying all four vertices for every single quadrangle becomes tedious.

Instead, it's much more convenient to generate the model from a coordinate array that includes indices for both the vertical and horizontal directions of the grid. This is what we call the Quadrangle Grid Mesh (QUADRANGLE_GRID) format.

Assuming the grid lies in the X-Y plane (though Y-Z or Z-X also work), this array structure holds the position of each grid point.

How to Create a Vertex Coordinate Array

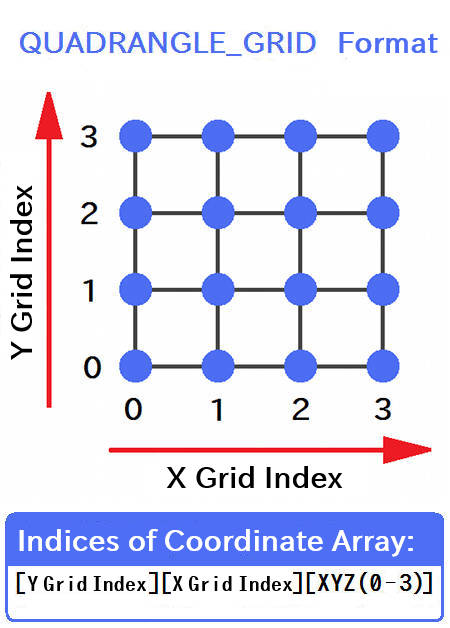

As shown in the diagram above, coordinate arrays in this format are structured as:

The first and second dimensions represent the Y and X indices of the grid. See the diagram for specific index values.

Note: Be careful that the format is [Y Grid Index][X Grid Index], not [X Grid Index][Y Grid Index]. This reversal of indices also applies when working with grids in the Y-Z or Z-X directions.

The third dimension represents the coordinate axes for each point: 0 for X, 1 for Y, and 2 for Z.

Also, the actual X coordinate values of points sharing the same X grid index (first dimension) don't have to be equal -- the same applies to Y. This allows for the expression of distorted or irregular grids as well.

Code

Full Code

The full code of this program is as follows:

In the next section, we'll explain each part of the code in detail.

Header Section

At the top of the program, we import the standard libraries for mathematical functions (Math), 3D graphics (Graphics3D), and the 3DCG framework (graphics3d.Graphics3DFramework):

Declaring Global Variables

Next, we declare some global variables. Here, we define the number of grid points (divisions) in the X and Y directions.

The "const" keyword locks the value so it cannot be changed, effectively making it a constant. This helps prevent bugs caused by accidentally modifying values that are meant to remain unchanged.

Implementing the onStart(...) Function

Next, we implement the onStart(...) function. This function is automatically called once when the program starts, and is where we perform initialization tasks such as configuring the screen and generating or mounting 3D models.

Let's go through it step by step. First, we declare the array that will store the vertex coordinates. Note that the dimensions are ordered as [ Y_N ][ X_N ]:

Next, we populate this array with coordinate values:

For the X and Y coordinates, we use values that create an orthogonal grid (although distorted grids are also possible).

The Z coordinate is calculated using sine functions of X and Y to create a wavy surface.

Now comes the main part: creating the model from the vertex array, setting its color, and mounting it. First, we create the model:

newModel(...) is a function in the Graphics3D library used to create 3D models.

The argument QUADRANGLE_GRID is a constant defined in the Graphics3D library and acts as a keyword indicating the quadrangle grid format. Following that, we pass in the "vertex" array, which will be interpreted using this format.

The newModel(...) function creates a model from the provided vertex array and returns a unique model ID assigned to it. In this example, we store it in a variable named "model", which is of type int. The model ID is necessary for placing or manipulating the model.

Next, we use the setModelColor() function, also from the Graphics3D library, to set the model's color:

The first argument is the ID of the model whose color you want to change.

The next three arguments specify the red, green, and blue color components as integers in the range 0-255. These are mixed additively to determine the final color. The last argument is the alpha value (also 0-255), which defines the transparency: 0 is fully transparent, and 255 is fully opaque.

Finally, we mount the model:

mountModel() is another function in the Graphics3D library, used to place models. The first argument is the ID of the model to mount.

The second argument is the ID of the 3D renderer (the 3D drawing engine), which the framework automatically provides. This renderer ID is passed to the onStart(...) function as the "renderer" argument, so we can just pass it directly here.

Note: The mountModel() function also allows an optional third argument to specify the coordinate system in which to place the model. If omitted, as in this example, the model is placed in world coordinates. We won't go into the details of world coordinates here, but you can think of it as the global stage on which all models are placed.
