Wrapping a C Program with a GUI (1: Simple Edition)

This example invokes a C-language "Hello, World" program from VCSSL and displays the output on the screen.

How to Use

Download and Extract

At first, click the "Download" button at the above of the title of this page by your PC (not smartphone). A ZIP file will be downloaded.

Then, please extract the ZIP file. On general environment (Windows®, major Linux distributions, etc.), you can extract the ZIP file by selecting "Extract All" and so on from right-clicking menu.

» If the extraction of the downloaded ZIP file is stopped with security warning messages...

Execute this Program

Next, open the extracted folder and execute this VCSSL program.

For Windows

Double-click the following batch file to execute:

For Linux, etc.

Execute "VCSSL.jar" on the command-line terminal as follows:

» If the error message about non-availability of "java" command is output...

After Launching

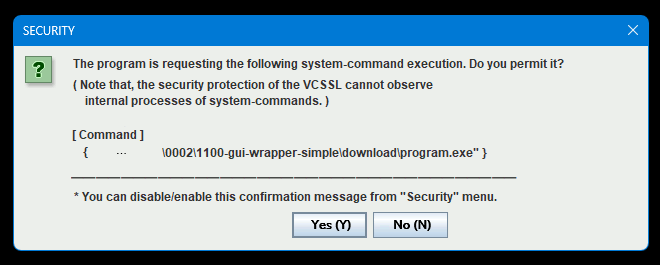

When you run this VCSSL program, a security warning like the one below appears first. Click "Yes" to continue.

If you continue, a C program named program.exe will be invoked and executed internally.

Its output, "Hello, World!", appears in the VCSSL console (the black window).

Because program.exe is compiled for Windows, it cannot run on other operating systems such as Linux. If you want to run the same logic on another OS, recompile the C source program.c and adjust the VCSSL invocation accordingly (the extension will likely be .out instead of .exe).

About This Example

It is common to want to call a program written in another language such as C from a lightweight scripting language like VCSSL.

A typical scenario when creating a small GUI tool is:

• Write the user-facing UI in a scripting language
• Write complex or heavy internal processing in C or a similar language

This series will follow that theme over the next few articles. This first entry simply calls a "Hello, World!" program.

Code Walkthrough

The main program is written in VCSSL. VCSSL uses a simple C-like syntax, so C programmers should read and write it without issue.

Full Code

Let's look at the VCSSL code. The entire script looks like this:

coding UTF-8;

// Load required libraries
import File;
import Process;

// Get the absolute path of the program file to run
string programPath = getFilePath("program.exe");

// Prepare the program so it can be executed
int processID = newProcess(programPath);

// If Japanese text in the I/O becomes garbled, specify encodings here
// setProcessInputEncoding(processID, "CP932");
// setProcessOutputEncoding(processID, "CP932");
// setProcessErrorEncoding(processID, "CP932");

// Run the program and wait for it to finish
startProcess(processID);
waitForProcess(processID);

// Get the program's output and print it to the VCSSL console (black window)
string output = getProcessOutput(processID);
println(output);

This script calls the Windows executable program.exe. The source code of that program is below:

#include

int main() {
    printf("Hello, World!\n");
    return 0;
}

A plain Hello World program. When you execute it directly, it prints:

Now let's walk through the VCSSL code step by step.

Importing Libraries

The script declares it is written in UTF-8 (to avoid misinterpretation) and loads the required libraries:

coding UTF-8;

// Load required libraries
import File;
import Process;

The File library provides utilities for obtaining and converting file paths. Here it is used to get the absolute path of the target program.

The Process library handles executing and controlling external programs, which is what most of this script does.

Preparing the Target Program

We inform newProcess about the external program and have it prepare the program in an executable state:

// Get the absolute path of the program file to run
string programPath = getFilePath("program.exe");

// Prepare the program so it can be executed
int processID = newProcess(programPath);

For newProcess, pass the file path of the external program. We recommend using an absolute path because relative paths or just a file name may fail depending on how the script is launched.

Here we use getFilePath to retrieve the absolute path of program.exe before passing it to newProcess.

newProcess returns a process ID, which we store in processID. This ID identifies the external program when executing and controlling it.

Optional Encoding Settings

Next are optional settings before running the external program. They remain commented out in this example but may be useful when handling Japanese text.

// If Japanese text in the I/O becomes garbled, specify encodings here
// setProcessInputEncoding(processID, "CP932");
// setProcessOutputEncoding(processID, "CP932");
// setProcessErrorEncoding(processID, "CP932");

It is common to specify character encodings like this to avoid garbled text.

The encoding used by an external program depends on the program or compiler. If VCSSL reads the output with the wrong encoding, the text becomes garbled.

Programs compiled on Windows that print Japanese often use the CP932 (≈ Shift_JIS) encoding. If the output garbles, teach VCSSL to use CP932 as shown. If nothing is specified, UTF-8 is assumed.

Starting Execution and Waiting

We execute the external program with startProcess and wait for it to finish with waitForProcess:

// Run the program and wait for it to finish
startProcess(processID);
waitForProcess(processID);

Waiting ensures the script pauses until the program completes, which is simple for programs that just print something and exit.

You could also continue running while exchanging I/O, but here waiting immediately after starting suffices; the output can be collected afterward.

Collecting Output and Displaying It in VCSSL

Finally, retrieve what the external program printed and display it in the VCSSL console:

// Get the program's output and print it to the VCSSL console (black window)
string output = getProcessOutput(processID);
println(output);

getProcessOutput returns everything the external program has printed so far.

Alternatively, you can define an onProcessOutput event handler to capture output line by line in real time:

void onProcessOutout(int processID, string output) {
    print(output);
}

Choose the method that best fits how you want to handle the output.

That concludes the code walkthrough.

If you continued further in the series, you would progressively expand this concept with richer GUI interactions.
